Take the family to the outback in our most popular custom-designed van with power and construction matched by comfort and luxury.

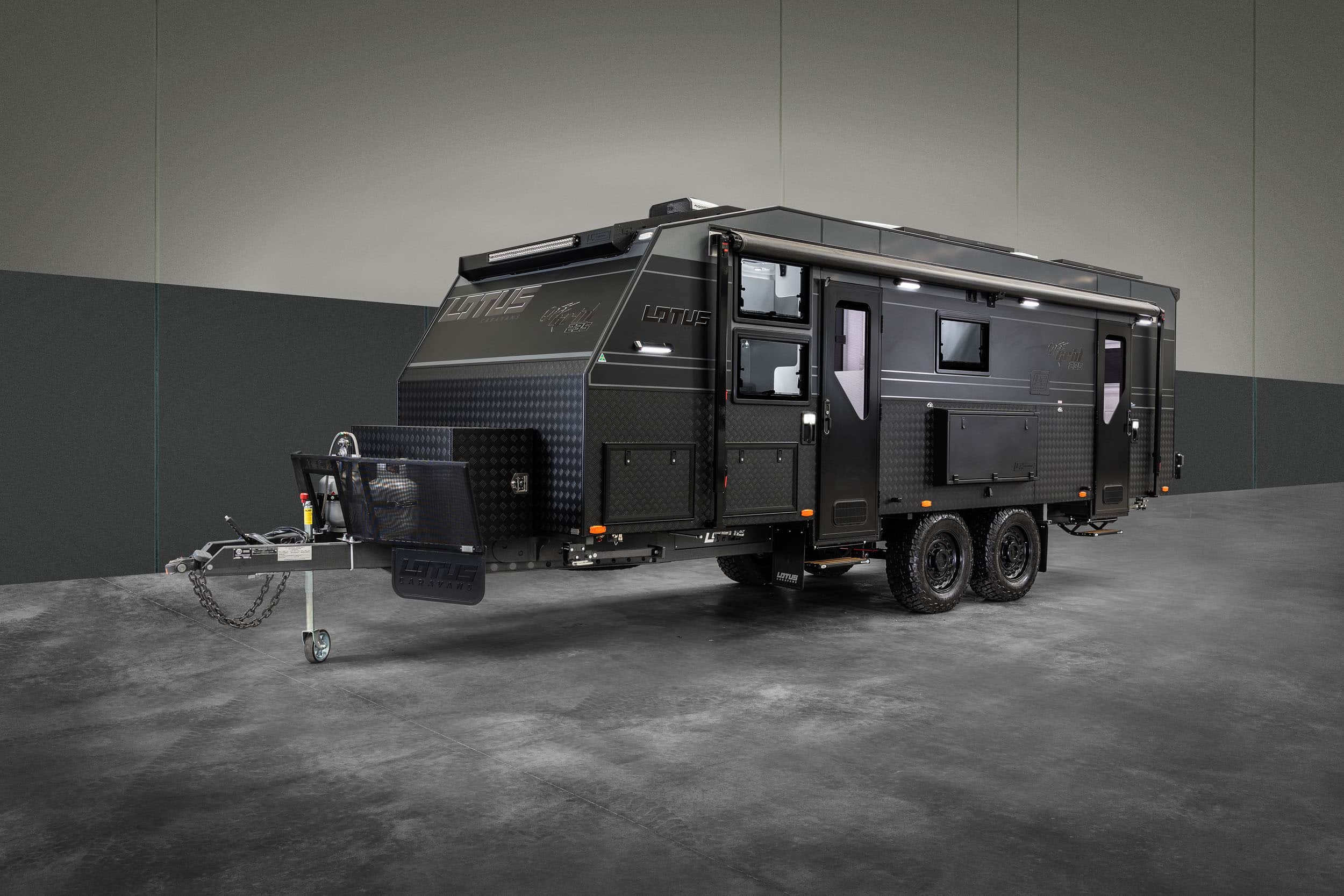

Exterior

Our most popular van, the adventure-seeking Off Grid is as tough-as-nails, with a luxury home-away-from-home experience customers have come to expect from Lotus Caravans. With triple panel solar, industry-leading battery capacity, and an unbeatable water storage capacity, the whole family will love camping in the outback. Like all our vans, the Off Grid is built around a hybrid frame of aluminium in the front, back and roof with the industry’s strongest timber wall construction and marine-grade composite panels.
  • 1 / 5
  • 2 / 5
  • 3 / 5
  • 4 / 5
  • 5 / 5

Interior

The superb design incorporates modern furniture and state-of-the-art appliances with the comfort of reverse cycle air conditioning and heating. Take a shower with the confidence of endless hot water. Enjoy the luxury of our premium bench tops and our unique interlocking cabinetry finish and relax to the sound of your favourite music on Fusion’s premium entertainment system.


  • 1 / 10
  • 2 / 10
  • 3 / 10
  • 4 / 10
  • 5 / 10
  • 6 / 10
  • 7 / 10
  • 8 / 10
  • 9 / 10
  • 10 / 10

Chassis & Suspension

This van is built to be put through its paces - so tough it practically dares you to throw anything at it. Once you’re done, it asks for more. Sporting BF Goodrich's toughest all-terrain tyres on custom 17” Lotus Caravans wheels, with heavy duty Control Rider twin shock suspension and 12” off-road brakes, the Off Grid will impress even in the most challenging conditions.
  • 1 / 4
  • 2 / 4
  • 3 / 4
  • 4 / 4

Layouts

With 12 different ergonomically designed floorplans, you will never have to compromise with the Off Grid. Customise to accommodate as many as six in your family for a ride that takes you beyond anything you could imagine. A Fusion Apollo 770 sound system with AM/FM, Bluetooth, and more plus a 24” LED flat screen TV have all your entertainment needs sorted, while the painstakingly designed premium kitchens bring unrivalled convenience for any road chef.

Electrical

Wherever you go, you and the family can rely on a whopping 510 Watts of solar power, along with a REDARC battery management system for the ultimate in reliability. 200 amp Enerdrive lithium batteries give you confidence off-grid, with strip lighting, push-button resettable fuses and plenty of lighting both indoors and out illuminate even the longest family trip.
  • 1 / 2
  • 2 / 2

Floorplans

The no-compromise floorplans of the Off Grid include 12 ergonomically designed models where your needs come first.

16'6 Foot (OG166D/T)

16'6 Foot (OG166D/T)

Specs

Exterior Body Length: 5130(mm)
Internal Length: 5055(mm)
Total Length (Tow Ball to Spare Tyre): 7618(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 2990(mm)
Internal Height: 1946(mm)

OG166D = Double bunks
OG166T = Triple bunks

18' Foot (OG18D/T)

18' Foot (OG18D/T)

Specs

Exterior Body Length: 5587(mm)
Internal Length: 5512(mm)
Total Length (Tow Ball to Spare Tyre): 8075(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3110(mm)
Internal Height: 1946(mm)

OG18D = Double bunks
OG18T = Triple bunks

19' Foot (OG19D/T)

19' Foot (OG19D/T)

Specs

Exterior Body Length: 5890(mm)
Internal Length: 5815(mm)
Total Length (Tow Ball to Spare Tyre): 8378(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3110(mm)
Internal Height: 1946(mm)

OG19D = Double bunks
OG19T = Triple bunks

19' Foot (OG19IBD/T)

19' Foot (OG19IBD/T)

Specs

Exterior Body Length: 5890(mm)
Internal Length: 5815(mm)
Total Length (Tow Ball to Spare Tyre): 8378(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3110(mm)
Internal Height: 1946(mm)

OG19IBD = Double bunks
OG19IBT = Triple bunks

19' Foot (OG19RDD/T)

19' Foot (OG19RDD/T)

Specs

Exterior Body Length: 5890(mm)
Internal Length: 5815(mm)
Total Length (Tow Ball to Spare Tyre): 8378(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3110(mm)
Internal Height: 1946(mm)

OG19RDD = Double bunks
OG19RDT = Triple bunks

20'6 Foot (OG206BD/T)

20'6 Foot (OG206BD/T)

Specs

Exterior Body Length: 6323(mm)
Internal Length: 6248(mm)
Total Length (Tow Ball to Spare Tyre): 8811(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3110(mm)
Internal Height: 1946(mm)

OG206BD = Double bunks
OG206BT = Triple bunks



20'9 Foot (OG209D/T)

20'9 Foot (OG209D/T)

Specs

Exterior Body Length: 6400(mm)
Internal Length: 6325(mm)
Total Length (Tow Ball to Spare Tyre): 8888(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3110(mm)
Internal Height: 1946(mm)

OG209D = Double bunks
OG209T = Triple bunks



21'9 Foot (OG219D/T)

21'9 Foot (OG219D/T)

Specs

Exterior Body Length: 6704(mm)
Internal Length: 6629(mm)
Total Length (Tow Ball to Spare Tyre): 9192(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3110(mm)
Internal Height: 1946(mm)

OG219D = Double bunks
OG219T = Triple bunks

22' Foot (OG22D/T)

22' Foot (OG22D/T)

Specs

Exterior Body Length: 6781(mm)
Internal Length: 6706(mm)
Total Length (Tow Ball to Spare Tyre): 9269(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3070(mm)
Internal Height: 1946(mm)

OG22D = Double bunks
OG22T = Triple bunks

22'3 Foot (OG223D/T)

22'3 Foot (OG223D/T)

Specs

Exterior Body Length: 6857(mm)
Internal Length: 6782(mm)
Total Length (Tow Ball to Spare Tyre): 9345(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3110(mm)
Internal Height: 1946(mm)

OG223D = Double bunks
OG223T = Triple bunks



23' Foot (OG23Q)

23' Foot (OG23Q)

Specs

Exterior Body Length: 7085(mm)
Internal Length: 7010(mm)
Total Length (Tow Ball to Spare Tyre): 9573(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3070(mm)
Internal Height: 1946(mm)

OG23Q = Four bunks


23'3 Foot (OG233D/T)

23'3 Foot (OG233D/T)

Specs

Exterior Body Length: 7162(mm)
Internal Length: 7087(mm)
Total Length (Tow Ball to Spare Tyre): 9650(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3160(mm)
Internal Height: 1946(mm)

OG233D = Double bunks
OG233T = Triple bunks

24'6 Foot (OG246Q)

24'6 Foot (OG246Q)

Specs

Exterior Body Length: 7543(mm)
Internal Length: 7468(mm)
Total Length (Tow Ball to Spare Tyre): 10031(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3070(mm)
Internal Height: 1946(mm)

OG246Q = Four bunks

Specifications

Internal

  • Hybrid Frame: Aluminium front, back & roof with the industry’s strongest timber wall construction
  • Modern & contemporary furniture with Lotus Caravans unique interlocking cabinetry
  • Premium range of matte & gloss laminate bench tops
  • Contemporary matte black sinks, taps & hardware pack
  • Residential grade soft close drawers with solid side support
  • Toughened residential grade hinge assembly
  • European-made vinyl floor
  • Italian leather lounge seating
  • Structural grade one-piece timber floor base
  • Bulkheads with striplights
  • Mesh & blockout blinds
  • Uniquely designed ergonomic floorplans

Appliances

  • 12V Compressor fridge
  • Fusion ultimate sound package:
  • - Fusion Apollo 770 System
  • - AM/FM/Bluetooth/USB/Wi-Fi, DAB+ Ready
  • - Fusion corner speakers in bedroom and lounge
  • - Fusion external sound panel
  • - Dual remote controls fitted
  • Euro-style front/top load washing machine
  • Dometic reverse cycle air-con & heating units:
  • - Sparrow
  • - IBIS 4
  • - Harrier
  • Thetford gas oven or mini grill
  • Slimline range hood
  • 25L Microwave except in 16’6”
  • Safety pack: Gas, smoke alarms & fire extinguisher
  • Winegard HD Sensar antenna
  • 24” LED flat screen TV
  • Explorer plug with feed to all TV points

Plumbing

  • 2 x 95L Water tanks
  • 1 x Grey water tank
  • Endless hot water service on demand
  • 12V Waterpump
  • Ceramic bowl toilet
  • One-piece fibreglass shower cubicle
  • Ceramic ensuite basin
  • Large kitchen sink
  • Mixer tap
  • 2 x Gas bottles
  • Gas bayonet
  • External shower
  • Water tap on stone guard

Chassis

  • G&S Control Rider Twin Shock independent suspension - Gabriel Shock Absorbers
  • Lotus Caravans exclusive truss chassis (tandem axle only)
  • Supergal charcoal off-road chassis
  • BF Goodrich’s toughest AT tyres on custom 17” Lotus Caravans wheels
  • DO35 V3 Coupling with integrated handbrake
  • 12” Off-road brakes
  • Drop-down stabiliser jacks
  • Galvanised bumper bar
  • Steel entry step
  • Recovery points
  • Galvanised jerry can holders
  • Break-away strap
  • 60mm Clamp on A-Frame

Electrical

  • REDARC Battery Management System
  • 200Ah of Lithium Power - Enerdrive
  • 600 Watts of Solar power
  • Complete NARVA LED lights:
  • – Downlights
  • – Reading lights
  • – Tunnel boot lights
  • – Strip lighting throughout
  • – Anti-insect annexe lights
  • Entry step lights switched at handle
  • Push-button resettable fuses
  • Front, side & rear work lights, large work light on front - with external switch
  • 12 Pin plug with Anderson
  • Extra Anderson plug for portable solar panel
  • 12V Sirocco fan
  • External power point

Exterior

  • German marine-grade composite panel in a range of exclusive colours
  • Flat top toolbox on A-Frame
  • Thick checkerplate body armour
  • Mesh stone guard with heavy duty Lotus Caravans mudflaps
  • Double-glazed tinted windows
  • Easy to use premium awning
  • Highest quality vinyl decal kit
  • External entertainment pack
  • Triple lock entry door with aluminium security mesh & roll up blind
  • Pressure hatch
  • 12V Points above wheels for air compressor
  • Lotus Caravans grab handles

Specifications may be subject to change without notice at the discretion of Lotus Caravans. Floorplans and imagery are for illustrative purposes only. Actual caravans may differ.
