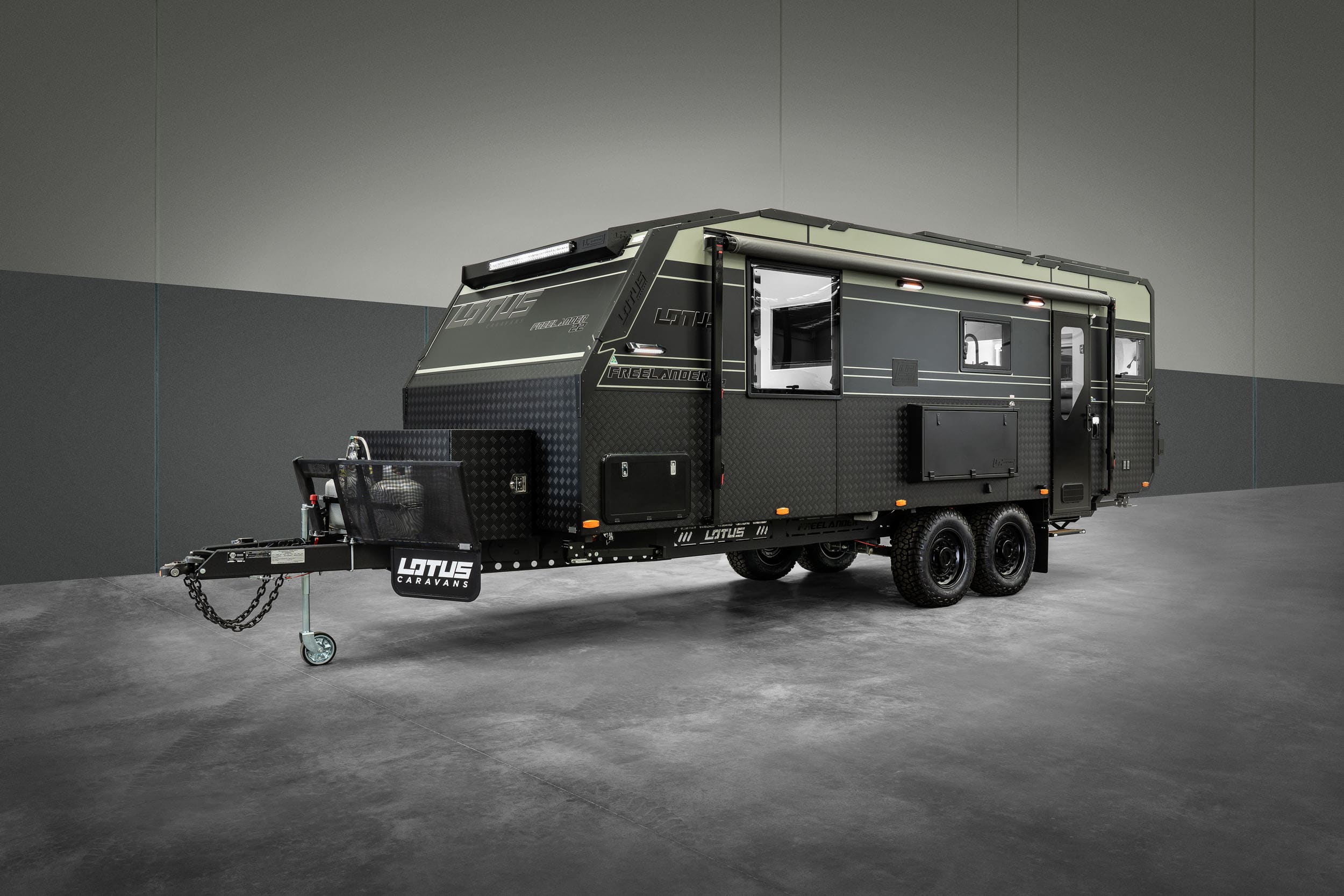

Luxury has no limits in this van that responds to the rough as effortlessly as the open road.

Floorplans

You’re spoilt for choice with 12 different ergonomically-designed floor plans from 15’ to 22’.

15' Foot (FR15RE)

15' Foot (FR15RE)

Specs

Exterior Body Length: 4650(mm)
Internal Length: 4575(mm)
Total Length (Tow Ball to Spare Tyre): 7138(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 2900(mm)
Internal Height: 1946(mm)

16'9 Foot (FR169IB)

16'9 Foot (FR169IB)

Specs

Exterior Body Length: 5206(mm)
Internal Length: 5131(mm)
Total Length (Tow Ball to Spare Tyre): 7694(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 2980(mm)
Internal Height: 1946(mm)

17'6 Foot (FR176EW)

17'6 Foot (FR176EW)

Specs

Exterior Body Length: 5434(mm)
Internal Length: 5359(mm)
Total Length (Tow Ball to Spare Tyre): 7922(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3020(mm)
Internal Height: 1946(mm)

18'9 Foot (FR189KD)

18'9 Foot (FR189KD)

Specs

Exterior Body Length: 5790(mm)
Internal Length: 5715(mm)
Total Length (Tow Ball to Spare Tyre): 8278(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3020(mm)
Internal Height: 1946(mm)

19'6 Foot (FR196CL)

19'6 Foot (FR196CL)

Specs

Exterior Body Length: 6020(mm)
Internal Length: 5945(mm)
Total Length (Tow Ball to Spare Tyre): 8508(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3020(mm)
Internal Height: 1946(mm)

19'6 Foot (FR196KD)

19'6 Foot (FR196KD)

Specs

Exterior Body Length: 6020(mm)
Internal Length: 5945(mm)
Total Length (Tow Ball to Spare Tyre): 8508(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3020(mm)
Internal Height: 1946(mm)

20'3 Foot (FR203KD)

20'3 Foot (FR203KD)

Specs

Exterior Body Length: 6246(mm)
Internal Length: 6171(mm)
Total Length (Tow Ball to Spare Tyre): 8424(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3020(mm)
Internal Height: 1946(mm)

20'9 Foot (FR209CL)

20'9 Foot (FR209CL)

Specs

Exterior Body Length: 6325(mm)
Internal Length: 6250(mm)
Total Length (Tow Ball to Spare Tyre): 8813(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3020(mm)
Internal Height: 1946(mm)

20'9 Foot (FR209KR)

20'9 Foot (FR209KR)

Specs

Exterior Body Length: 6325(mm)
Internal Length: 6250(mm)
Total Length (Tow Ball to Spare Tyre): 8813(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3020(mm)
Internal Height: 1946(mm)

21'3 Foot (FR213CL)

21'3 Foot (FR213CL)

Specs

Exterior Body Length: 6552(mm)
Internal Length: 6477(mm)
Total Length (Tow Ball to Spare Tyre): 9040(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3020(mm)
Internal Height: 1946(mm)

21'6 Foot (FR216CL)

21'6 Foot (FR216CL)

Specs

Exterior Body Length: 6625(mm)
Internal Length: 6550(mm)
Total Length (Tow Ball to Spare Tyre): 9113(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3020(mm)
Internal Height: 1946(mm)

22' Foot (FR22CL)

22' Foot (FR22CL)

Specs

Exterior Body Length: 6780(mm)
Internal Length: 6705(mm)
Total Length (Tow Ball to Spare Tyre): 9344(mm)
External Width: 2500(mm)
Internal Width: 2240(mm)
External Height (Ground to top of air-con): 3160(mm)
Internal Height: 1946(mm)

Specifications

INTERNAL

  • Hybrid Frame: Aluminium front, back & roof with the industry’s strongest timber wall construction
  • Modern & contemporary furniture with Lotus Caravans unique interlocking cabinetry
  • Premium range of matte & gloss laminate bench tops
  • Contemporary matte black sinks, taps & hardware pack
  • Residential grade soft close drawers with solid side support
  • Toughened residential grade hinge assembly
  • European-made vinyl floor
  • Italian leather lounge seating
  • Structural grade one-piece timber floor base
  • Pull-out pantry *
  • Bulkheads with striplights
  • Mesh & blockout blinds
  • Uniquely designed ergonomic floorplans

APPLIANCES

  • 12V Compressor fridge
  • Fusion ultimate sound package:
  • - Fusion Apollo 770 System
  • - AM/FM/Bluetooth/USB/Wi-Fi, DAB+ Ready
  • - Fusion corner speakers in bedroom and lounge
  • - Fusion external sound panel
  • - Dual remote controls fitted
  • Euro-style front/top load washing machine (except 15’ & 16’9”)
  • Dometic reverse cycle air-con & heating units:
  • - Sparrow
  • - IBIS 4
  • - Harrier
  • Thetford gas oven or mini grill
  • Slimline range hood
  • 25L Microwave
  • Safety pack: Gas, smoke alarms & fire extinguisher
  • Winegard HD Sensar antenna
  • 24” LED Flat Screen TV or
  • 2 x 32” TVs on 22’
  • Explorer plug with feed to all TV points

PLUMBING

  • 2 x 95L Water tanks
  • 1 x Grey water tank
  • Endless hot water service on demand
  • 12V Waterpump
  • Ceramic bowl toilet
  • One-piece fibreglass shower cubicle
  • Ceramic ensuite basin
  • Large kitchen sink
  • Mixer tap with quality water filter
  • 2 x Gas bottles
  • Gas bayonet
  • External shower
  • Water tap on stone guard

CHASSIS

  • G&S Control Rider Twin Shock independent suspension - Gabriel Shock Absorbers
  • Lotus Caravans exclusive truss chassis (tandem axle only)
  • Supergal charcoal off-road chassis
  • BF Goodrich’s toughest AT tyres on custom 17” Lotus Caravans wheels
  • DO35 V3 Coupling with integrated handbrake
  • 12” Off-road brakes
  • Drop-down stabiliser jacks
  • Galvanised bumper bar
  • Aluminium entry step
  • Galvanised jerry can holders
  • Break-away strap
  • 60mm Clamp on A-Frame

ELECTRICAL

  • REDARC Battery Managment System
  • 200Ah of Lithium Power - Enerdrive
  • 510 Watts of Solar power
  • Reverse camera with dash screen
  • Complete NARVA LED lights:
  • – Downlights
  • – Reading lights
  • – Tunnel boot lights
  • – Strip lighting throughout
  • – Anti-insect annexe lights
  • Entry step lights switched at handle
  • Large work light on front - with external switch
  • 12 Pin plug with Anderson
  • External power point
  • Push-button resettable fuses
  • TV point (internal & external)
  • 12V USB ports throughout

EXTERIOR

  • German marine-grade composite panel in a range of exclusive colours
  • Flat top toolbox on A-Frame
  • Thick checkerplate body armour
  • Mesh stone guard with heavy duty Lotus Caravans mudflaps
  • Double-glazed tinted windows
  • Easy to use premium awning
  • Highest quality vinyl decal kit
  • External entertainment pack
  • Triple lock entry door with aluminium security mesh & roll up blind
  • Pressure hatch
  • 12V Points above wheels for air compressor
  • Lotus Caravans grab handles

Specifications may be subject to change without notice at the discretion of Lotus Caravans. Floorplans and imagery are for illustrative purposes only. Actual caravans may differ.
